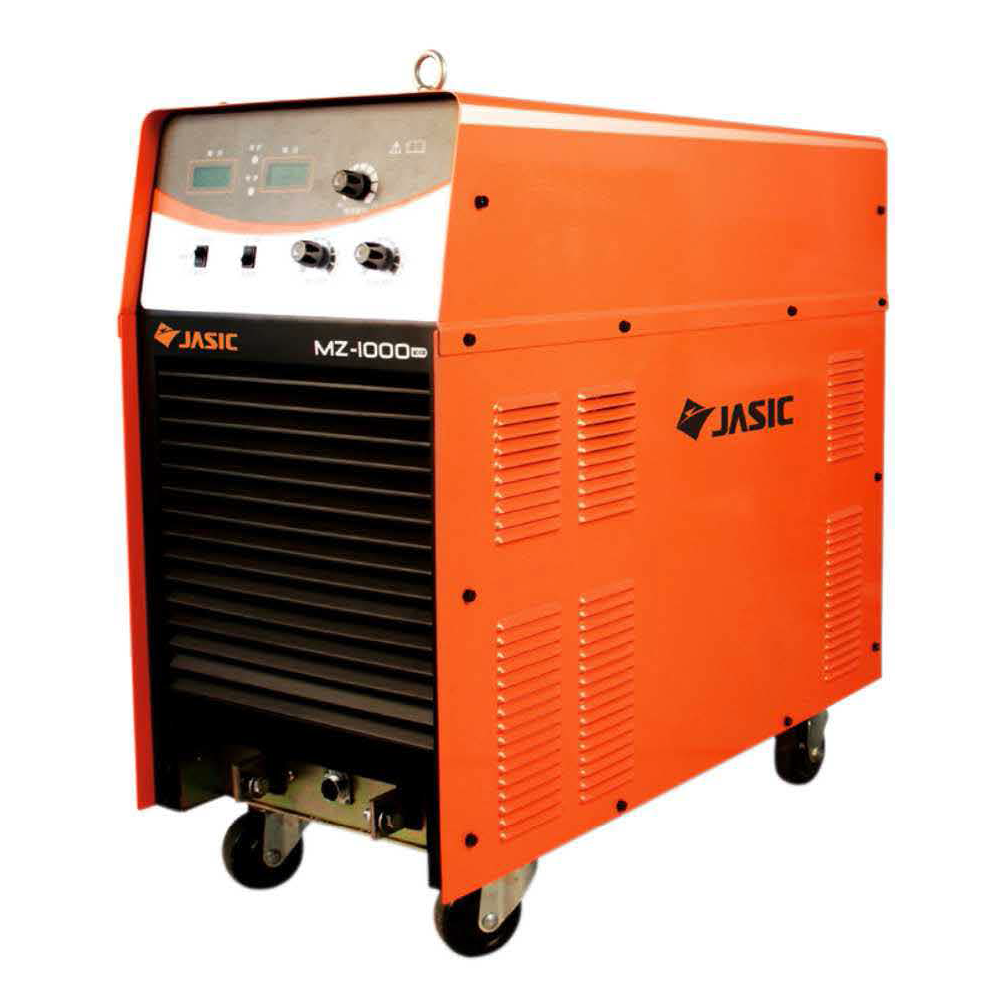

SAW MZ 1000

SAW MZ 1000

  • 1000A/44V, 100% duty cycle; max short-circuited current is 1500A.
  • Multiple output modes; suitable for MM/arc gouging, CC SAW/CV SAW.
  • Imported top brands power devices (INFINEON) ensures high reliability.
  • Unique control circuit guarantees balanced output current of two sides. (Patent no. : 200920262380.0)
  • Multiple protection including over-current, over-heat, phase loss, overvoltage and undervoltage protections.
  • Professional 3-proofing designs ensure well operation in extremely harsh environment.

Product Inquiry

SKU: N/A Categories:
Technical Parameters MZ-1000 M308 MZ-1250 M310
Input power source 3~AC380V±15% 50/60Hz
Rated input current (A) 73.2 91.5
Rated input power capacity (KVA) 52 65
Power factor (cosφ) 0.85 0.85
No-load voltage (V) 79 79
Rated output (A/V) 1000/44 1250/44
Welding current (A) 100-1000 100-1250
Arc start range (A) 0-500 0-580
Arc force range (A) 0-500 0-580
Rated duty cycle (%) @40℃ 100 80
Efficiency (%) 91 91
Protection class IP21 IP21
Insulation class F F
Dimensions (mm) 890×400×811 890×400×811
Weight (kg) 115 115
Contact Form
Contact info

Phone number

+91 9879156589

+91 7016361870

Address info

Adinath Equipments Private Limited FF, 11-12-13, Dinubhai Estate, Near Annapoorna Restaurant, Trikampura Patia, Vatva GIDC Vatwa, Ahmedabad - 382445, Gujarat, India


The SAW MZ 1000 is a type of welding machine designed for submerged arc welding (SAW). It is typically used in heavy-duty industrial applications and is capable of welding large metal structures with high accuracy and efficiency.

The main benefits of using the SAW MZ 1000 are its high welding speed, high deposition rates, and excellent weld quality. The machine is also designed for ease of use, with simple controls and a user-friendly interface.

The SAW MZ 1000 is capable of welding a variety of materials, including carbon steel, stainless steel, and alloy steels. It is commonly used in applications such as shipbuilding, pipeline welding, and the manufacture of heavy machinery and equipment.
